5-147121-1
  • Share:

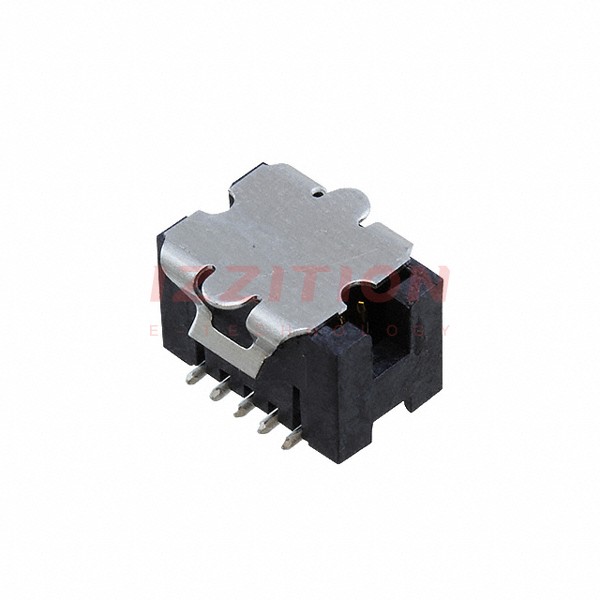

TE Connectivity AMP Connectors 5-147121-1

Manufacturer No:
5-147121-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
5-147121-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 10POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.226" (5.74mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Pick and Place
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A per Contact
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.63
150

Please send RFQ , we will respond immediately.
