5-147105-3
  • Share:

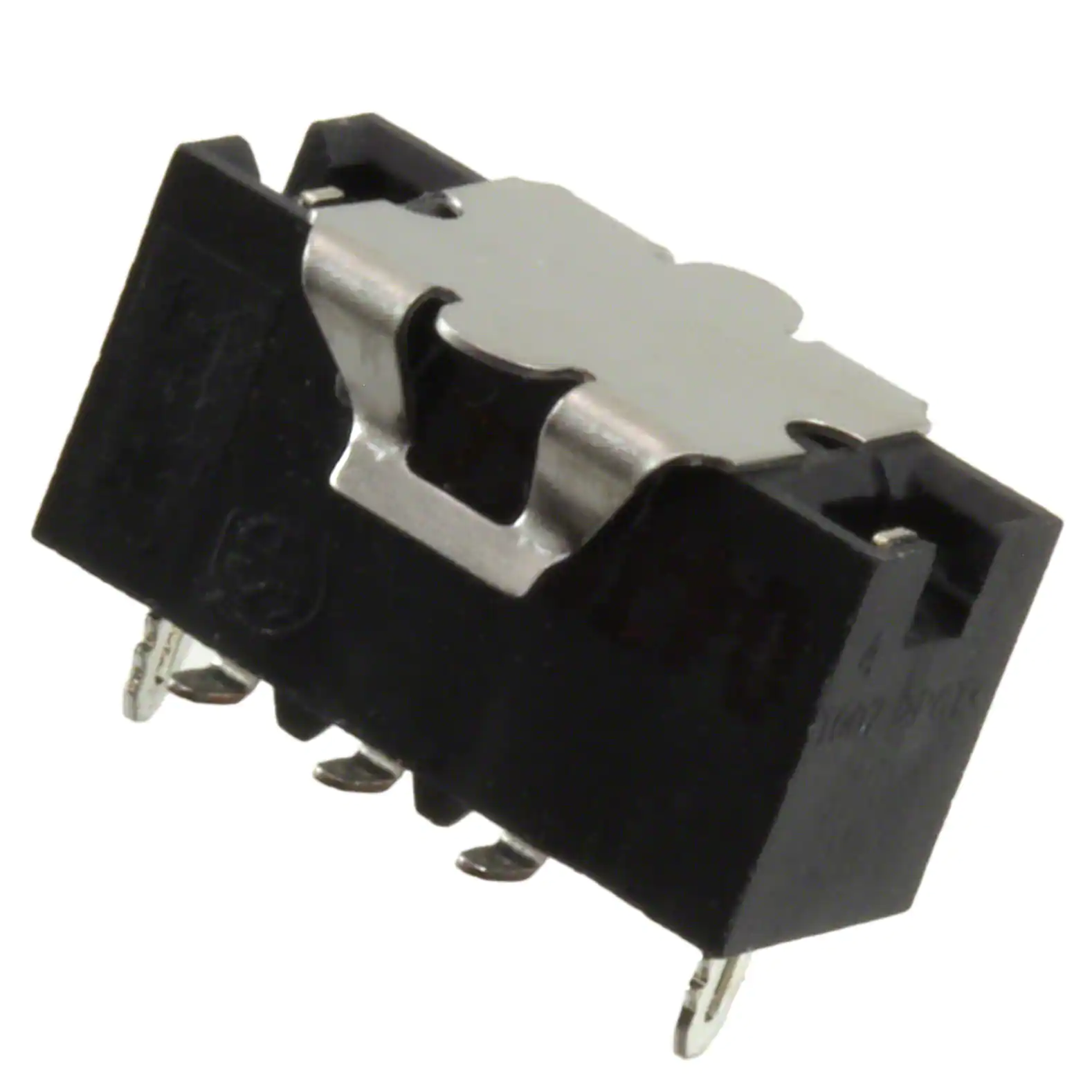

TE Connectivity AMP Connectors 5-147105-3

Manufacturer No:
5-147105-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
5-147105-3 Datasheet
ECAD Model:
-
Description:
CONN RCPT 6POS 0.1 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:6
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.265" (6.73mm)
Contact Length - Post:-
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):2A
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.34
499

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5-147105-3 5-147105-5   5-147105-6   5-147105-8
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active
Connector Type Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry
Contact Type Female Socket Female Socket Female Socket Female Socket
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of Positions 6 10 12 16
Number of Positions Loaded All All All All
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Insulation Color Black Black Black Black
Insulation Height 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm)
Contact Length - Post - - - -
Operating Temperature -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Tin Tin Tin Tin
Mated Stacking Heights - - - -
Ingress Protection - - - -
Features Pick and Place Pick and Place Pick and Place Pick and Place
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating - - - -
