5-147046-1
  • Share:

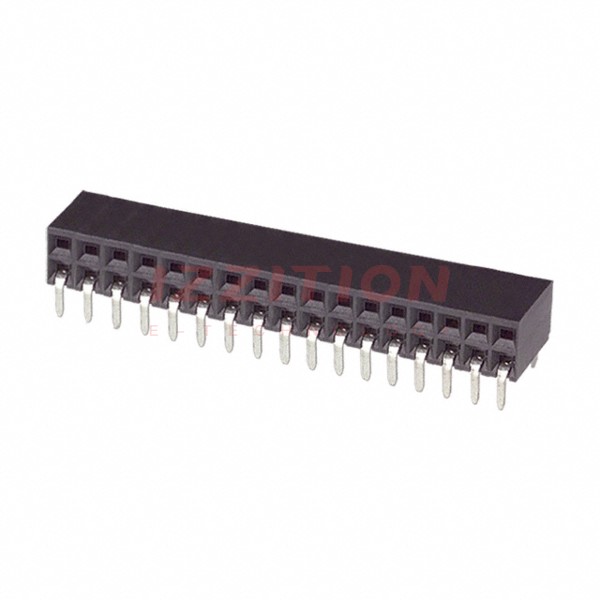

TE Connectivity AMP Connectors 5-147046-1

Manufacturer No:
5-147046-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-147046-1 Datasheet
ECAD Model:
-
Description:
CONN RCPT 34POS 0.1 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:34
Number of Positions Loaded:26
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.238" (6.05mm)
Contact Length - Post:0.115" (2.92mm)
Operating Temperature:-65°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
498

Please send RFQ , we will respond immediately.
