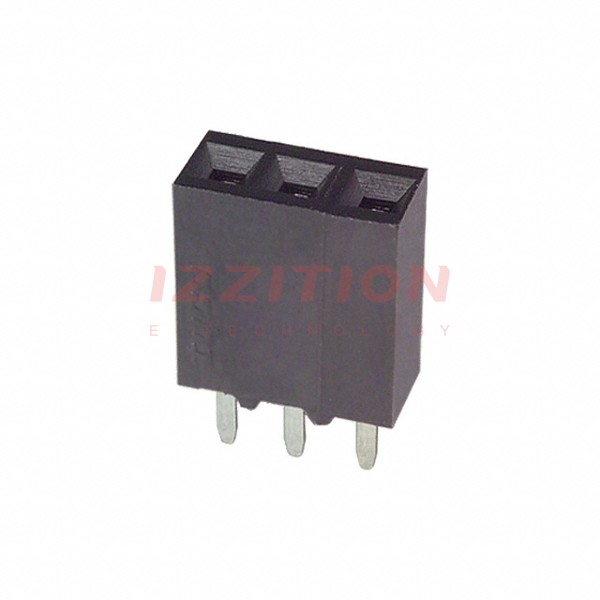

| Part Number | 5-146386-1 | 5-146386-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 3 | 6 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | 10.0µin (0.25µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.340" (8.64mm) | 0.340" (8.64mm) |
| Contact Length - Post | 0.115" (2.92mm) | 0.115" (2.92mm) |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | - | - |
