TE Connectivity AMP Connectors-5-146259-4 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	5-146259-4	5-146279-4	5-146269-4	5-146259-5	5-146259-6	5-146259-8	5-146250-4	5-146252-4	5-146253-4	5-146254-4	5-146255-4	5-146256-4	5-146257-4	5-146258-4	5-146259-2	5-146259-3
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	8	4	8	10	12	16	8	8	8	8	8	8	8	8	4	6
Number of Rows	2	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	-	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)
Overall Contact Length	0.410" (10.41mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.533" (13.55mm)	0.533" (13.55mm)	0.533" (13.55mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.440" (11.18mm)	0.410" (10.41mm)	0.410" (10.41mm)	0.410" (10.41mm)
Insulation Height	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Tin	Gold	Gold	Tin	Gold	Gold	Gold	Tin	Gold	Gold
Contact Finish Thickness - Mating	5.00µin (0.127µm)	5.00µin (0.127µm)	30.0µin (0.76µm)	5.00µin (0.127µm)	5.00µin (0.127µm)	5.00µin (0.127µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	100.0µin (2.54µm)	5.00µin (0.127µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	100.0µin (2.54µm)	5.00µin (0.127µm)	5.00µin (0.127µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Features	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Operating Temperature	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Voltage Rating	-	-	-	-	-	-	-	-	-	-	30VAC	-	-	-	-	-

Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.090" (2.29mm)
Overall Contact Length:	0.410" (10.41mm)
Insulation Height:	0.090" (2.29mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	5.00µin (0.127µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-65°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-

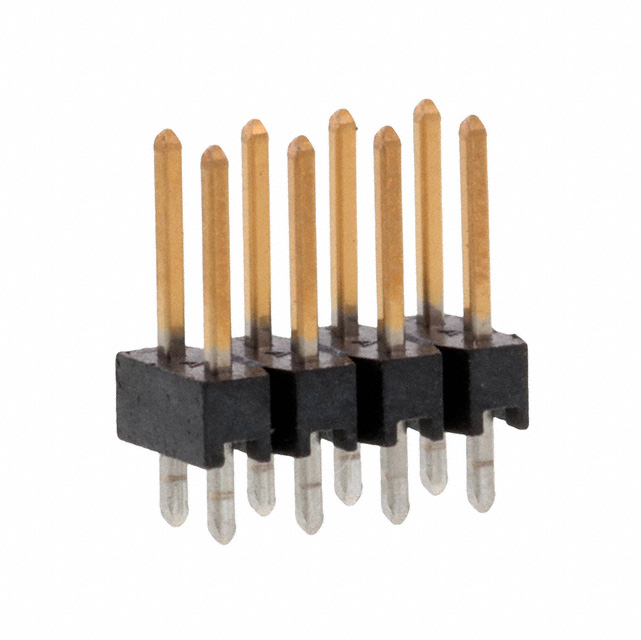

TE Connectivity AMP Connectors 5-146259-4

Product Attributes

In Stock
