5-146087-1
  • Share:

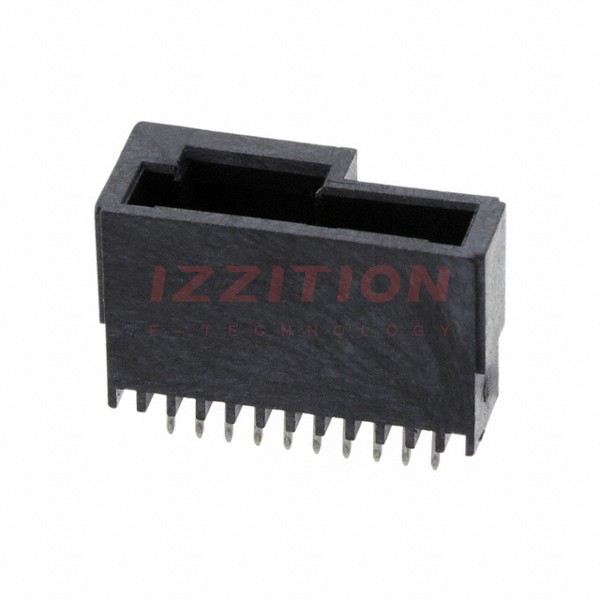

TE Connectivity AMP Connectors 5-146087-1

Manufacturer No:
5-146087-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-146087-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 10POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.125" (3.18mm)
Contact Length - Post:0.100" (2.54mm)
Overall Contact Length:-
Insulation Height:0.390" (9.91mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$1.45
331

Please send RFQ , we will respond immediately.
