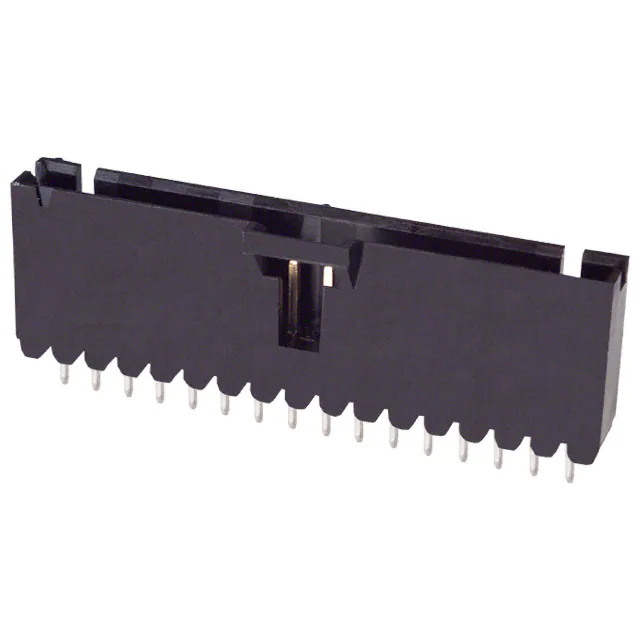

| Part Number | 5-104966-1 | 5-104666-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.050" (1.27mm) |
| Number of Positions | 16 | 20 |
| Number of Rows | 1 | 2 |
| Row Spacing - Mating | - | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 2 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.230" (5.84mm) | 0.125" (3.18mm) |
| Contact Length - Post | 0.186" (4.72mm) | 0.145" (3.68mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.535" (13.60mm) | 0.390" (9.91mm) |
| Contact Shape | Square | Circular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) | Thermoplastic |
| Features | Keying Slot | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | 30VAC |
