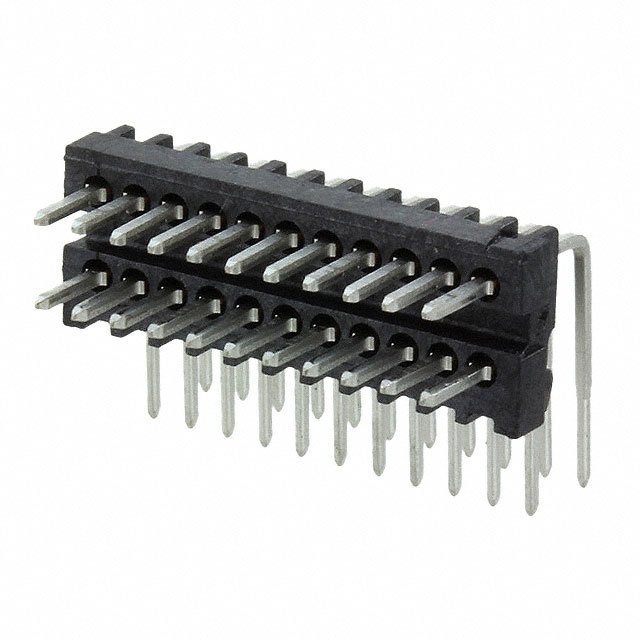

TE Connectivity AMP Connectors 5-104746-2

Manufacturer No:
5-104746-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
5-104746-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 22POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:22
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:0.136" (3.46mm)
Overall Contact Length:-
Insulation Height:0.216" (5.49mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$4.15
19

Please send RFQ , we will respond immediately.
