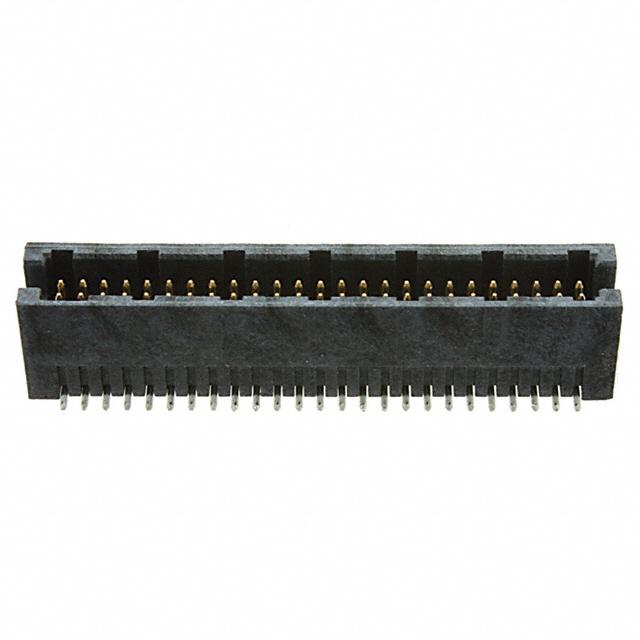

TE Connectivity AMP Connectors 5-104656-5

Manufacturer No:
5-104656-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-104656-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 50POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.298" (7.57mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A per Contact
Voltage Rating:-
0 Remaining View Similar

In Stock

$8.38
92

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5-104656-5 5-104656-8   5-104656-7   5-104666-5   5-104655-5   5-104656-1   5-104656-2   5-104656-3   5-104656-4
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm)
Number of Positions 50 80 70 80 40 10 20 30 40
Number of Rows 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.100" (2.54mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm)
Number of Positions Loaded All All All All All All All All All
Style Board to Board Board to Board Board to Board Board to Board or Cable Board to Board Board to Board Board to Board Board to Board Board to Board
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 2 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Through Hole Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Latch Holder Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.125" (3.18mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm)
Contact Length - Post - - - 0.145" (3.68mm) - - - - -
Overall Contact Length - - - - - - - - -
Insulation Height 0.298" (7.57mm) 0.298" (7.57mm) 0.298" (7.57mm) 0.390" (9.91mm) 0.226" (5.74mm) 0.298" (7.57mm) 0.298" (7.57mm) 0.298" (7.57mm) 0.298" (7.57mm)
Contact Shape Circular Circular Circular Circular Circular Circular Circular Circular Circular
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Copper Alloy Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Thermoplastic Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Features Board Lock Board Lock Board Lock - Board Lock Board Lock Board Lock Board Lock Board Lock
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black
Current Rating (Amps) 0.5A per Contact 0.5A per Contact 0.5A per Contact - 0.5A per Contact 0.5A per Contact 0.5A per Contact 0.5A per Contact 0.5A per Contact
Voltage Rating - - - 30VAC - - - - -
