5-104196-5
  • Share:

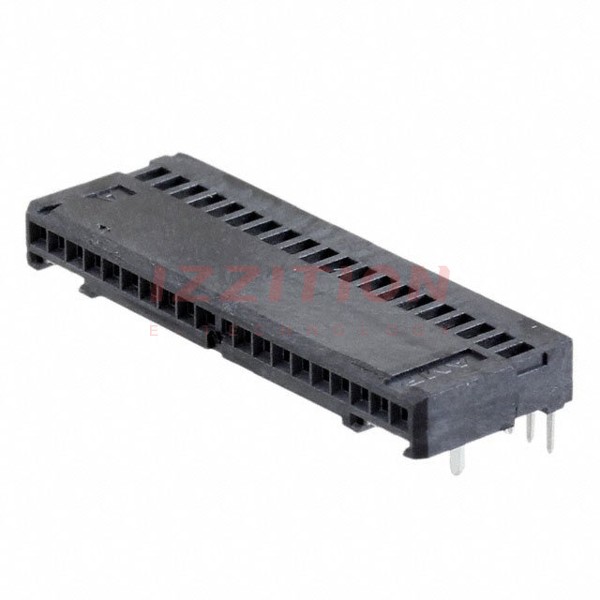

TE Connectivity AMP Connectors 5-104196-5

Manufacturer No:
5-104196-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-104196-5 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20P 0.05 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.117" (2.97mm)
Contact Length - Post:0.100" (2.54mm)
Operating Temperature:-65°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):1A
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$6.63
113

Please send RFQ , we will respond immediately.
