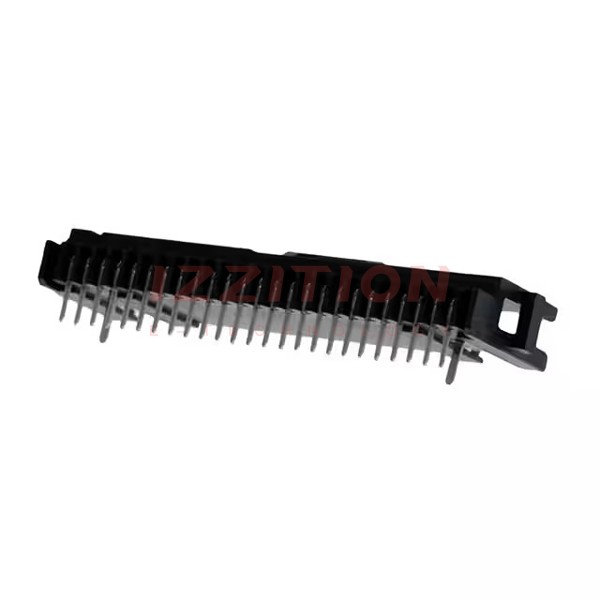

TE Connectivity AMP Connectors 5-104074-5

Manufacturer No:
5-104074-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-104074-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 25POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:25
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 2 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.125" (3.18mm)
Contact Length - Post:0.100" (2.54mm)
Overall Contact Length:-
Insulation Height:0.190" (4.83mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$8.47
3

Please send RFQ , we will respond immediately.
