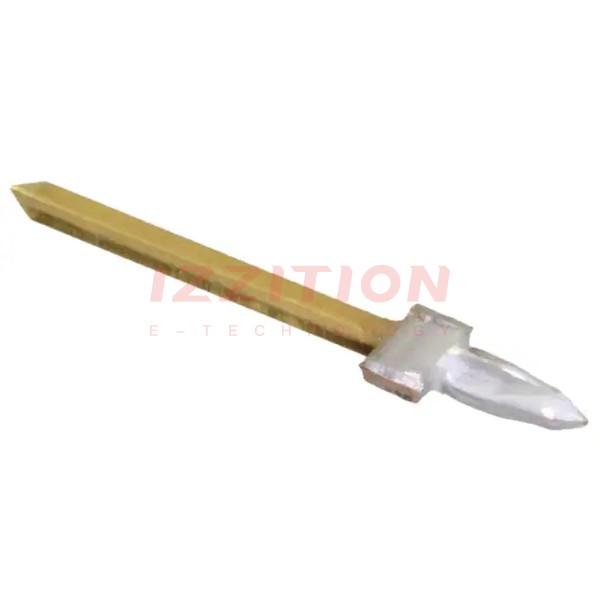

| Part Number | 5-103577-5 | 5-103577-1 | 5-103577-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Single Post | Single Post | Single Post |
| Terminal Style | Pin Retention | Pin Retention | Pin Retention |
| Pin Size - Above Flange | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square |
| Pin Size - Below Flange | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square | 0.025" (0.64mm) Square |
| Length - Above Flange | - | - | - |
| Length - Below Flange | - | - | - |
| Length - Overall | 0.341" (8.66mm) | 0.424" (10.77mm) | 0.389" (9.88mm) |
| Flange Diameter | - | - | - |
| Mounting Hole Diameter | 0.034" ~ 0.036" (0.86mm ~ 0.91mm) | 0.034" ~ 0.036" (0.86mm ~ 0.91mm) | 0.034" ~ 0.036" (0.86mm ~ 0.91mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Board Thickness | 0.062" ~ 0.125" (1.57mm ~ 3.18mm) | 0.062" ~ 0.125" (1.57mm ~ 3.18mm) | 0.062" ~ 0.125" (1.57mm ~ 3.18mm) |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
