5-102398-5
  • Share:

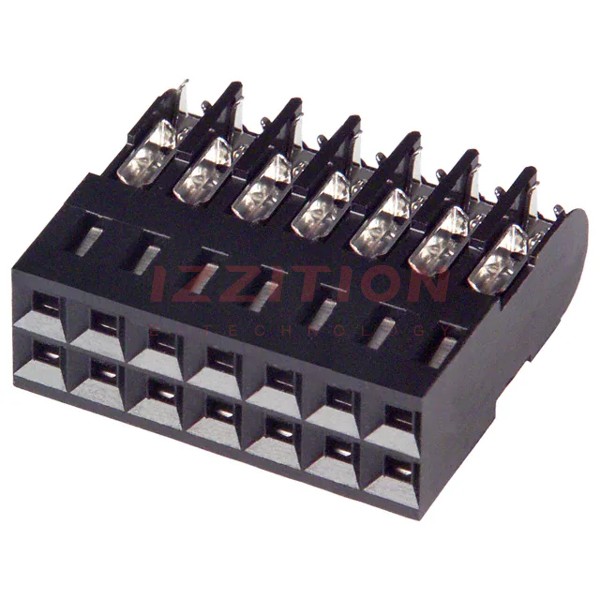

TE Connectivity AMP Connectors 5-102398-5

Manufacturer No:
5-102398-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
5-102398-5 Datasheet
ECAD Model:
-
Description:
CONN RCPT 14P IDC 22-26AWG GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:14
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Free Hanging (In-Line)
Fastening Type:-
Cable Termination:IDC
Wire Type:Discrete or Ribbon Cable
Wire Gauge:22-26 AWG
Features:Closed End
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
0 Remaining View Similar

In Stock

$9.74
44

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5-102398-5 5-102398-7   5-102398-8   5-102398-6   5-102393-5   5-102398-1   5-102398-2   5-102398-3   5-102398-4
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 14 18 20 16 14 6 8 10 12
Pitch 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2 2 2 2 2 2
Row Spacing 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type - - - - - - - - -
Cable Termination IDC IDC IDC IDC IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 22-26 AWG 22-26 AWG 22-26 AWG 22-26 AWG 26-30 AWG 22-26 AWG 22-26 AWG 22-26 AWG 22-26 AWG
Features Closed End Closed End Closed End Closed End Closed End Closed End Closed End Closed End Closed End
Contact Finish Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Color Black Black Black Black Black Black Black Black Black
