Please send RFQ , we will respond immediately.

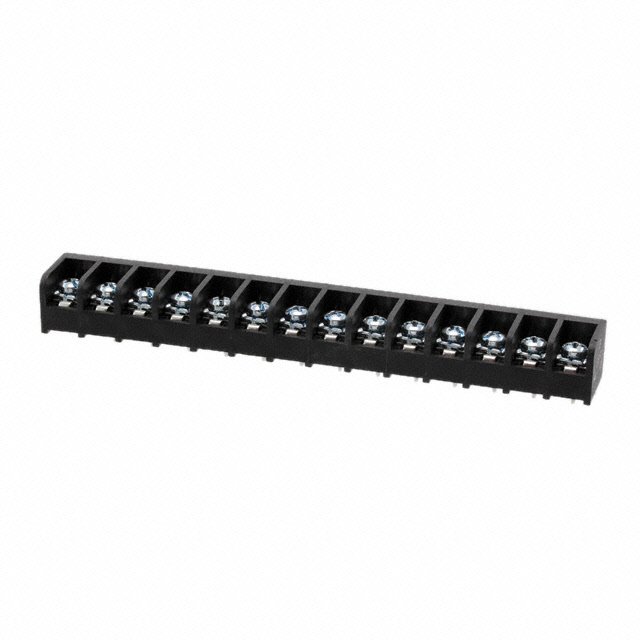

| Part Number | 4PCV-14-006 | 6PCV-14-006 | 4PCV-04-006 | 4PCV-10-006 | 4PCV-12-006 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 14 | 14 | 4 | 10 | 12 |
| Number of Wire Entries | 14 | 14 | 4 | 10 | 12 |
| Pitch | 0.325" (8.26mm) | 0.375" (9.53mm) | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.325" (8.26mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 20A | 25A | 20A | 20A | 20A |
| Voltage Rating | 150V | 300V | 150V | 150V | 150V |
| Wire Gauge | 14-22 AWG | 12-22 AWG | 12-22 AWG | 14-22 AWG | 12-22 AWG |
| Top Termination | Screws with Captive Plate | Screws | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black |
