Please send RFQ , we will respond immediately.

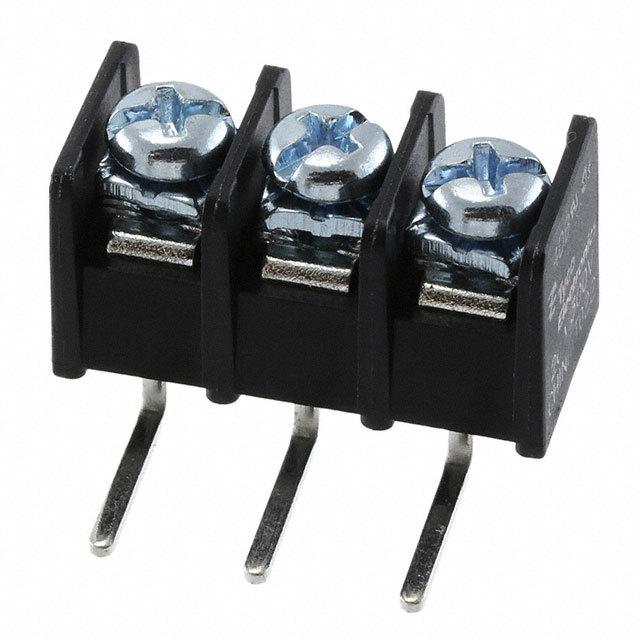

| Part Number | 4DB-R108-03 | 4DB-R108-05 | 4DB-R108-06 | 4DB-P108-03 | 4DB-R108-02 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 3 | 5 | 6 | 3 | 2 |
| Number of Wire Entries | 3 | 5 | 6 | 3 | 2 |
| Pitch | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.325" (8.26mm) | 0.325" (8.26mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 20A | 20A | 20A | 20A | 20A |
| Voltage Rating | 150V | 150V | 150V | 150V | 150V |
| Wire Gauge | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate | Screws with Captive Plate |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) | 2 Wall (Dual) |
| Features | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black |
