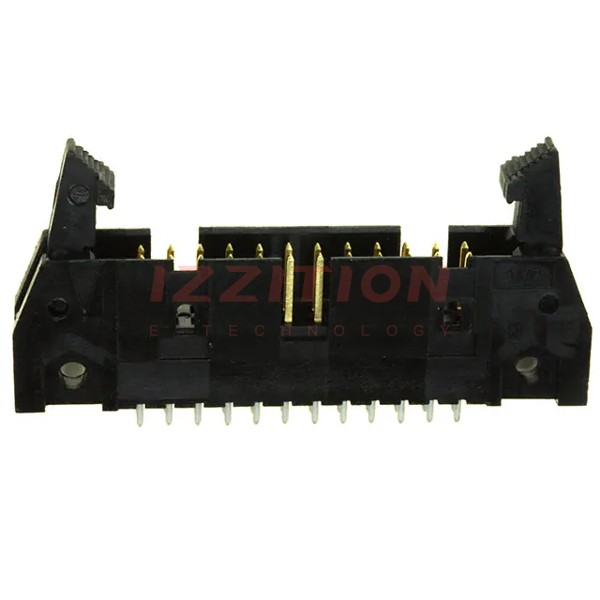

TE Connectivity AMP Connectors-499910-5 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	499910-5	499910-6	499910-8	499910-9	499913-5	499910-7	499910-1	499910-2	499910-3	499910-4
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Obsolete	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	24	26	34	40	24	30	10	14	16	20
Number of Rows	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)
Overall Contact Length	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	-	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)
Insulation Height	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.315" (8.00mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish Thickness - Mating	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead	Tin-Lead
Contact Material	-	-	-	-	Brass	-	-	-	-	-
Insulation Material	-	-	-	-	-	-	-	-	-	-
Features	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	1A	1A	1A	1A	1A per Contact	1A	1A	1A	1A	1A
Voltage Rating	-	-	-	-	250VAC	-	-	-	-	-

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	24
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Short
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.639" (16.23mm)
Insulation Height:	0.549" (13.94mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	-
Insulation Material:	-
Features:	Keying Slot, Mounting Flange
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-
