Please send RFQ , we will respond immediately.

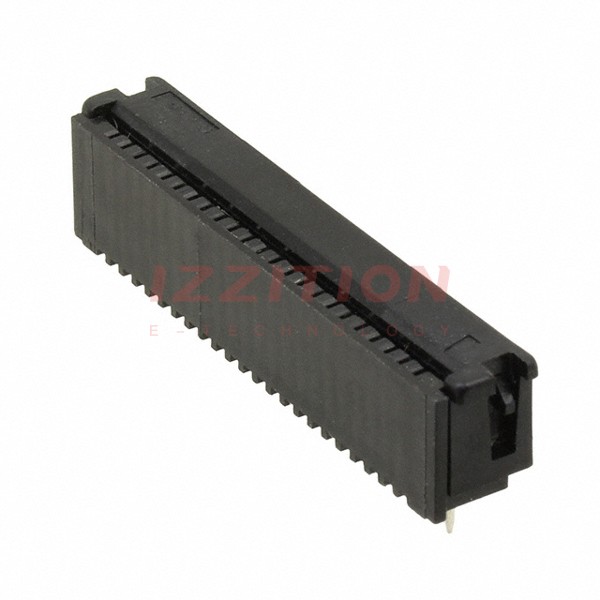

| Part Number | 487925-8 | 487925-1 | 487925-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Number of Positions | 11 | 8 | 14 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.12mm | 0.12mm | 0.12mm |
| Height Above Board | 0.310" (7.87mm) | 0.310" (7.87mm) | 0.310" (7.87mm) |
| Locking Feature | Slide Lock | Slide Lock | Slide Lock |
| Cable End Type | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Actuator Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | - | - | - |
| Operating Temperature | - | - | - |
| Material Flammability Rating | - | - | - |
