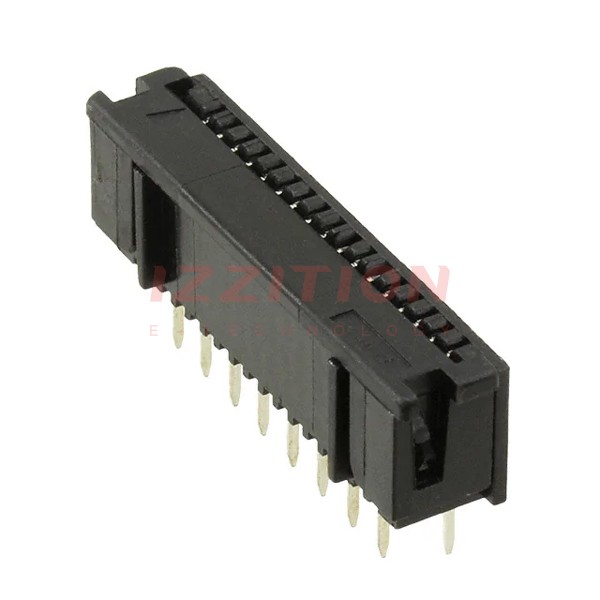

| Part Number | 487576-9 | 487576-1 | 487576-2 | 487576-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC | FFC |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Number of Positions | 17 | 9 | 10 | 12 |
| Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Termination | Solder | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.10mm ~ 0.31mm | 0.10mm ~ 0.31mm | 0.10mm ~ 0.31mm | 0.10mm ~ 0.31mm |
| Height Above Board | 0.310" (7.87mm) | 0.310" (7.87mm) | 0.310" (7.87mm) | 0.310" (7.87mm) |
| Locking Feature | Slide Lock | Slide Lock | Slide Lock | Slide Lock |
| Cable End Type | Straight | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Actuator Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 150V | 150V | 150V | 150V |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | - | - | - | - |
