Please send RFQ , we will respond immediately.

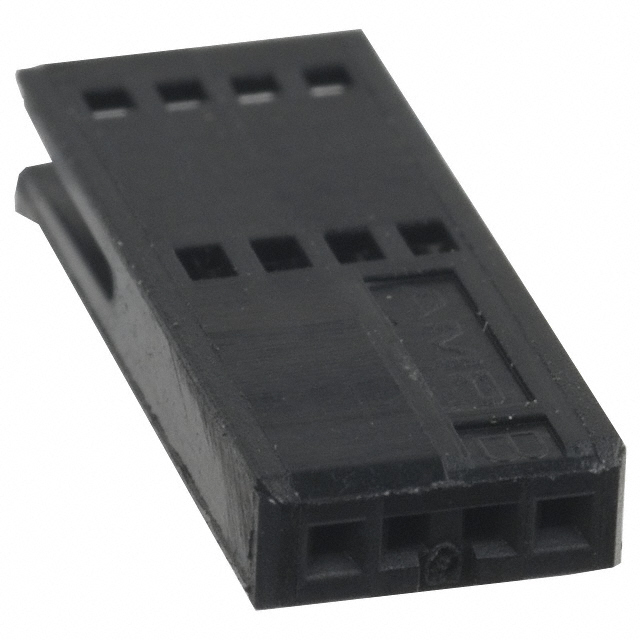

| Part Number | 487544-1 | 487544-2 | 487544-7 | 487544-5 | 487544-3 | 487544-4 | 487545-1 | 487544-9 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC | FFC | FFC | FFC | FFC | FFC |
| Connector Type | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts |
| Number of Positions | 4 | 5 | 10 | 8 | 6 | 7 | 4 | 12 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| FFC, FCB Thickness | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm | 0.05-0.08mm |
| Locking Feature | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Latch Lock | Detent Lock |
| Voltage Rating | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Housing Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| Features | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
