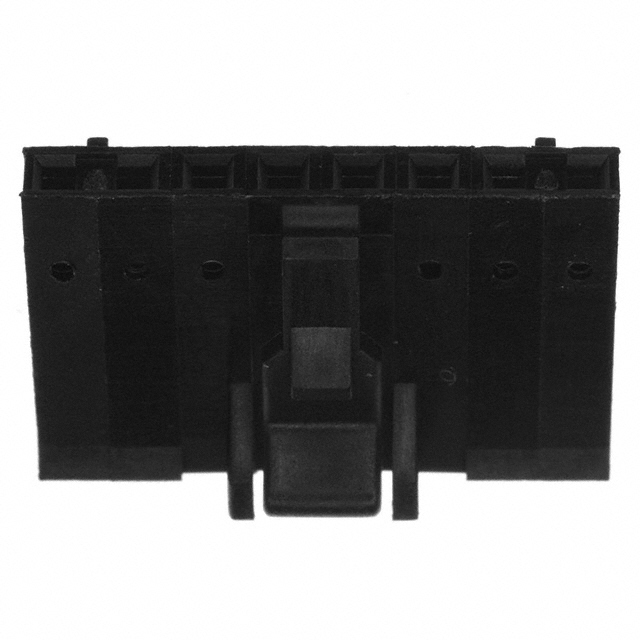

| Part Number | 487526-7 | 487526-9 | 487526-8 | 487526-1 | 487526-2 | 487526-3 | 487526-4 | 487526-5 | 487526-6 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC | FFC | FFC | FFC | FFC | FFC | FFC |
| Connector Type | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts | Housing for Female Contacts |
| Number of Positions | 8 | 10 | 9 | 2 | 3 | 4 | 5 | 6 | 7 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| FFC, FCB Thickness | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm | 0.05-0.13mm |
| Locking Feature | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Voltage Rating | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
