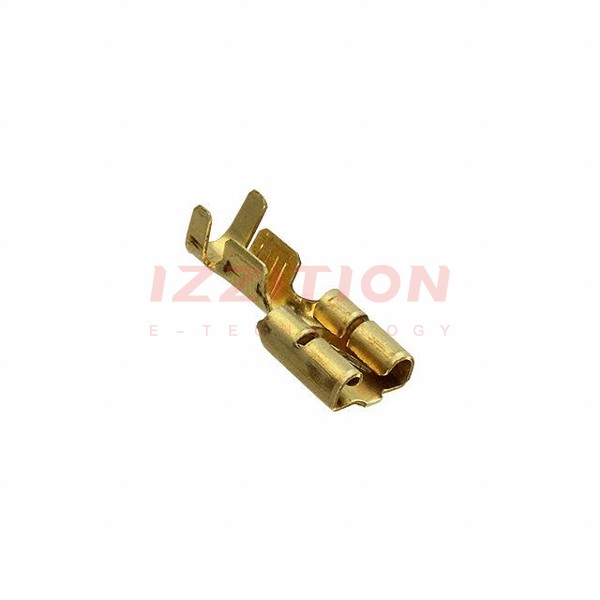

| Part Number | 444335-1 | 444335-3 | 444335-2 | 444334-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.303" (7.70mm) | 0.303" (7.70mm) | 0.303" (7.70mm) | 0.303" (7.70mm) |
| Length - Overall | 0.673" (17.10mm) | 0.673" (17.10mm) | 0.673" (17.10mm) | 0.673" (17.10mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 13-17 AWG | 13-17 AWG | 13-17 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | - | Tin | - |
