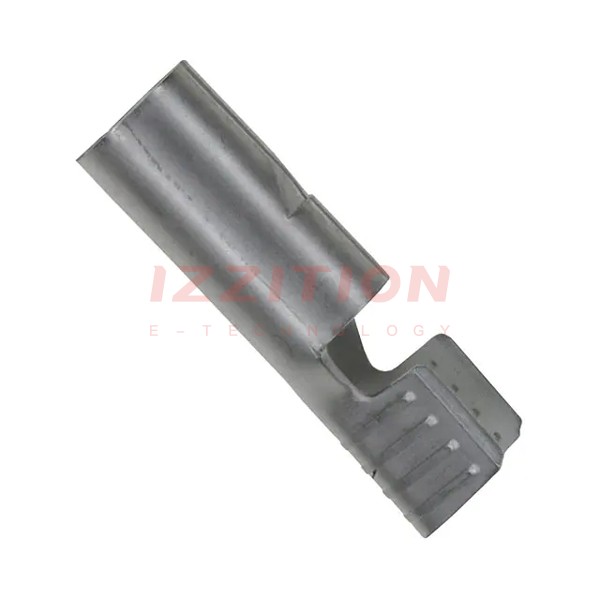

| Part Number | 42868-3 | 42865-3 | 42868-1 | 42868-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Female, Receptacle (Socket) | Male, Pin (Plug) | Female, Receptacle (Socket) | Female, Receptacle (Socket) |
| Diameter - Barrel | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.180" (4.57mm) |
| Wire Gauge | 10-14 AWG | 10-14 AWG | 10-14 AWG | 10-14 AWG |
| Length - Overall | 0.720" (18.29mm) | 0.865" (21.97mm) | 0.720" (18.29mm) | 0.720" (18.29mm) |
| Length - Barrel | 0.420" (10.67mm) | 0.437" (11.10mm) | 0.420" (10.67mm) | 0.420" (10.67mm) |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Features | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - | Tin |
| Color | - | - | - | - |
