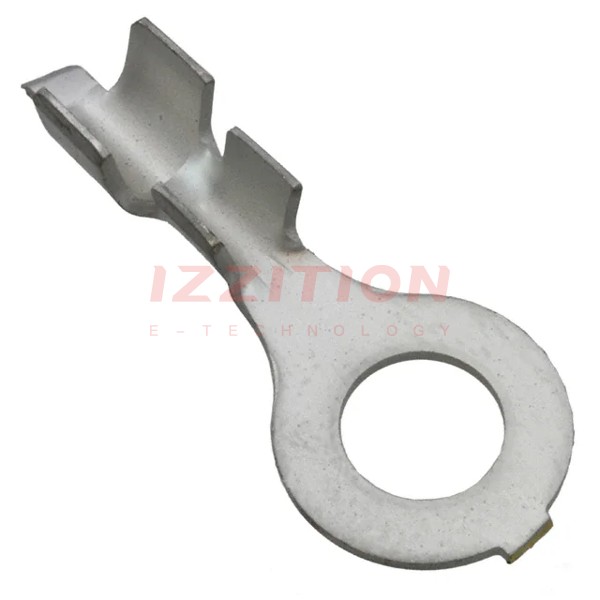

| Part Number | 42751-2 | 42752-2 | 42751-3 | 42751-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Oval | Circular | Circular |
| Stud/Tab Size | - | - | - | - |
| Thickness | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.030" (0.76mm) |
| Width - Outer Edges | 0.470" (11.94mm) | 0.470" (11.94mm) | 0.470" (11.94mm) | 0.470" (11.94mm) |
| Length - Overall | 1.046" (26.57mm) | 1.046" (26.57mm) | 1.046" (26.57mm) | 1.046" (26.57mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | - | - |
