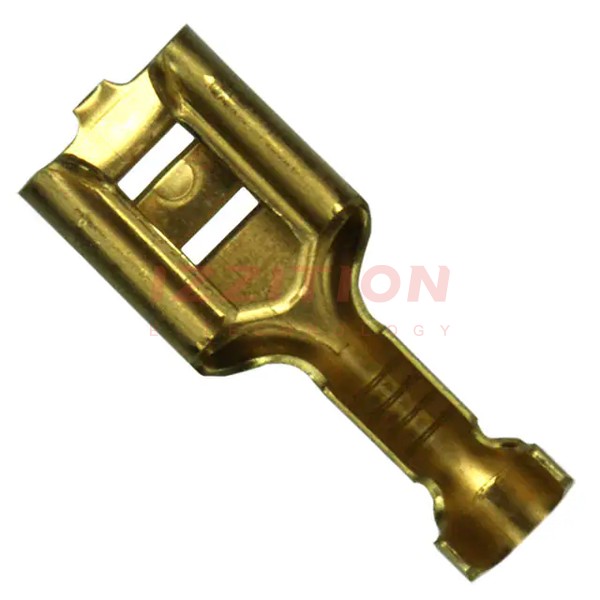

| Part Number | 42743-1 | 42743-2 | 42741-1 | 42742-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Stacked | Angled - 90°, Flag |
| Gender | Female | Female | Female and Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) |
| Length - Overall | 0.755" (19.18mm) | 0.755" (19.18mm) | 0.770" (19.56mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 14-18 AWG | 12-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | - | - |
