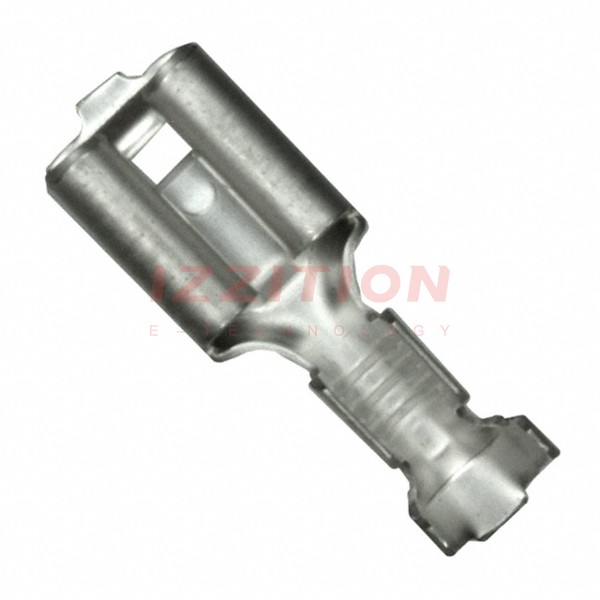

| Part Number | 42617-2 | 42618-2 | 42117-2 | 42617-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Angled - 90° | Standard |
| Gender | Female | Female | Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.260" (6.60mm) | - | 0.250" (6.35mm) |
| Length - Overall | 0.585" (14.86mm) | - | - | 0.585" (14.86mm) |
| Termination | Crimp | Crimp | Screw, Rivet, Stud | Crimp |
| Wire Gauge | 16-20 AWG | 16-20 AWG | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Board, Chassis | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | - |
