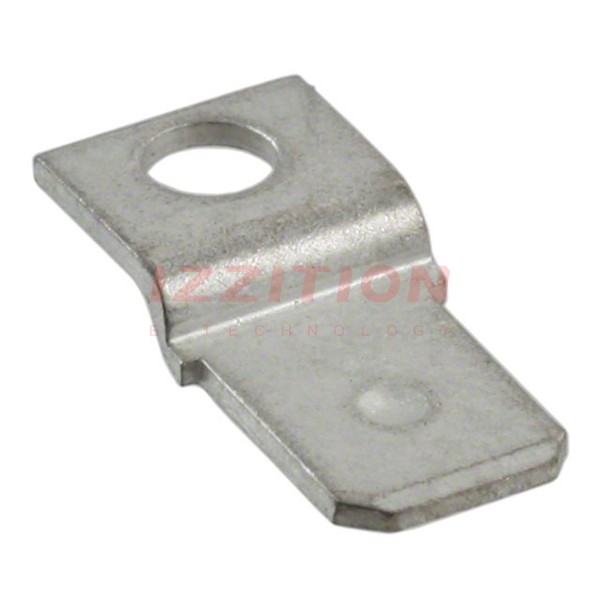

| Part Number | 42506-2 | 42566-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Offset | Standard |
| Gender | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.315" (8.00mm) | 0.250" (6.35mm) |
| Length - Overall | 0.615" (15.62mm) | 0.633" (16.08mm) |
| Termination | Screw, Rivet, Stud | Crimp |
| Wire Gauge | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Tin |
