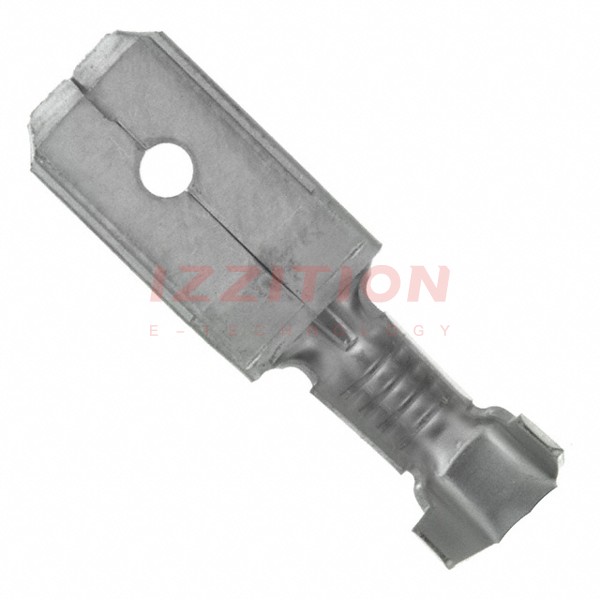

| Part Number | 42474-2 | 42475-2 | 42474-4 | 42474-3 | 42374-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Male | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.015" (0.38mm) |
| Tab Length | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.250" (6.35mm) |
| Length - Overall | 0.810" (20.57mm) | 0.815" (20.70mm) | 0.810" (20.57mm) | 0.810" (20.57mm) | 0.470" (11.94mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 18-22 AWG | 14-18 AWG | 14-18 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | - | Tin |
