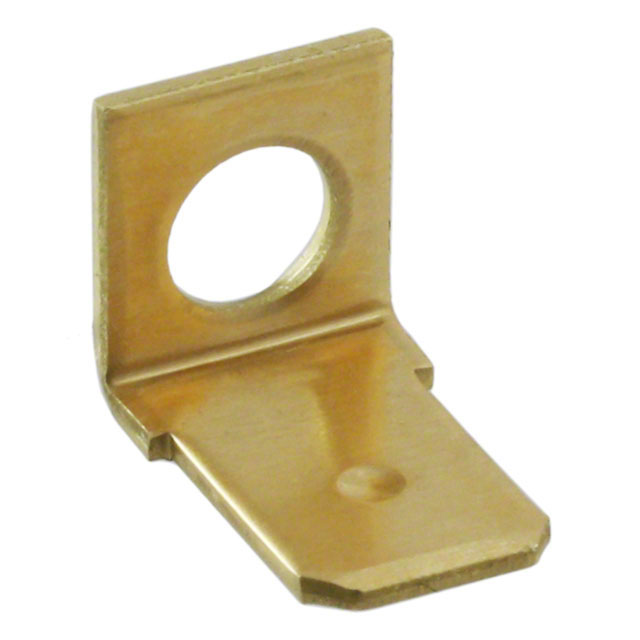

| Part Number | 42214-1 | 42214-2 | 42219-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90° | Angled - 90° | Standard |
| Gender | Male | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | - | 0.305" (7.75mm) |
| Length - Overall | - | - | 0.795" (20.19mm) |
| Termination | Screw, Rivet, Stud | Screw, Rivet, Stud | Crimp |
| Wire Gauge | - | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Board, Chassis | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Steel |
| Contact Finish | - | Tin | Nickel |
