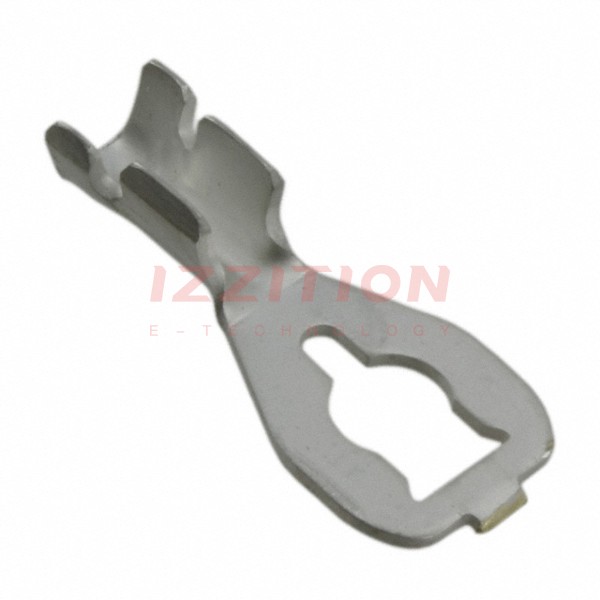

| Part Number | 42168-2 | 42169-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Spring, Snap | Spring, Snap |
| Stud/Tab Size | 8 Stud | 10 Stud |
| Width - Outer Edges | 0.343" (8.71mm) | 0.343" (8.71mm) |
| Length - Overall | 0.745" (18.92mm) | 0.745" (18.92mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | - | - |
| Color | - | - |
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
