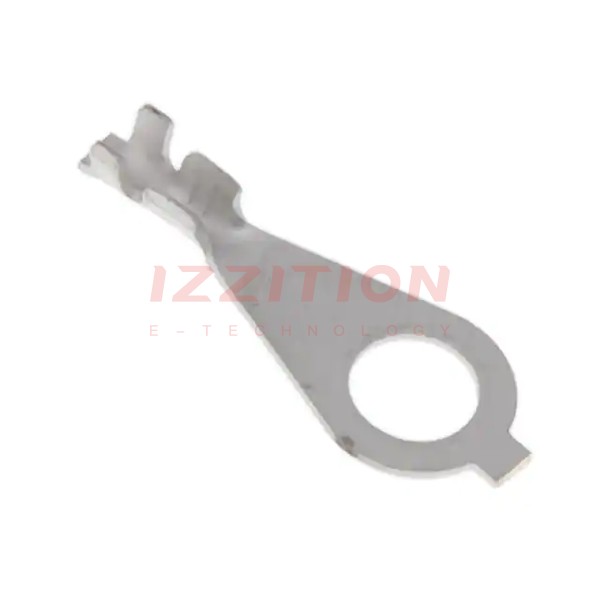

| Part Number | 42164-2 | 42864-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | - | 10 Stud |
| Thickness | 0.020" (0.51mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.343" (8.71mm) |
| Length - Overall | 0.770" (19.56mm) | 0.921" (23.39mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 10-12 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin |
