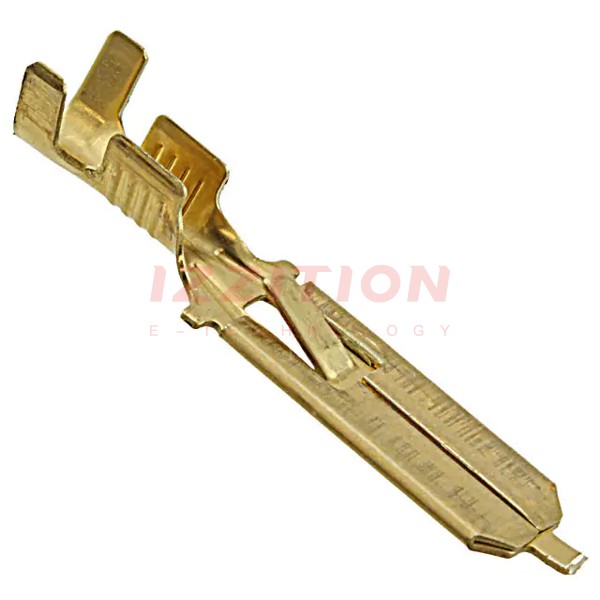

| Part Number | 42098-1 | 42098-2 | 42198-1 | 42068-1 | 42095-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Angled - 90° |
| Gender | Male | Male | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.205" (5.21mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.620" (15.75mm) | 0.620" (15.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | - |
| Length - Overall | 1.107" (28.12mm) | 1.107" (28.12mm) | 0.616" (15.65mm) | 0.635" (16.13mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Screw, Rivet, Stud |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 18-22 AWG | 18-22 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | - | Tin | Tin |
