Please send RFQ , we will respond immediately.

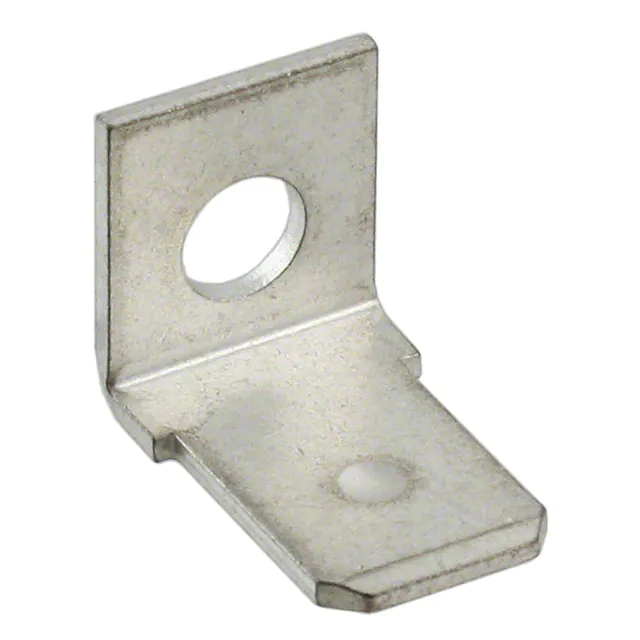

| Part Number | 42095-1 | 42098-1 | 42025-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90° | Standard | Standard |
| Gender | Male | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.620" (15.75mm) | 0.305" (7.75mm) |
| Length - Overall | - | 1.107" (28.12mm) | 0.805" (20.45mm) |
| Termination | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | - | 14-18 AWG | 16-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | - | Tin |
