Please send RFQ , we will respond immediately.

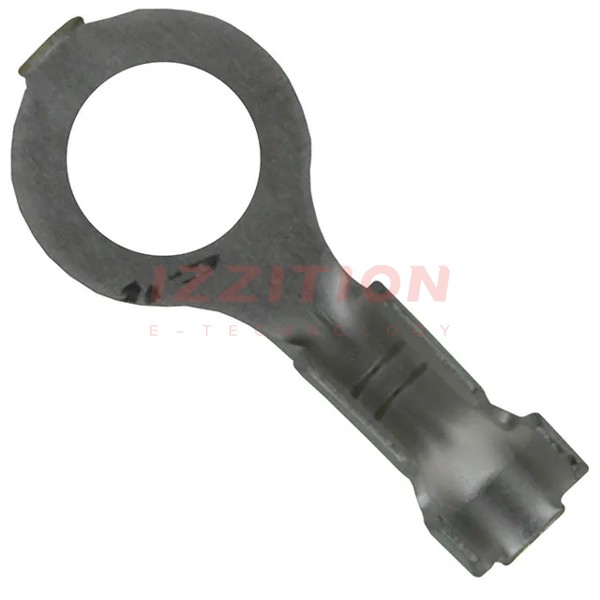

| Part Number | 42037-1 | 42037-2 | 42036-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Oval | Oval | Circular |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud |
| Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Width - Outer Edges | 0.296" (7.52mm) | 0.296" (7.52mm) | 0.296" (7.52mm) |
| Length - Overall | - | - | 0.662" (16.81mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - |
