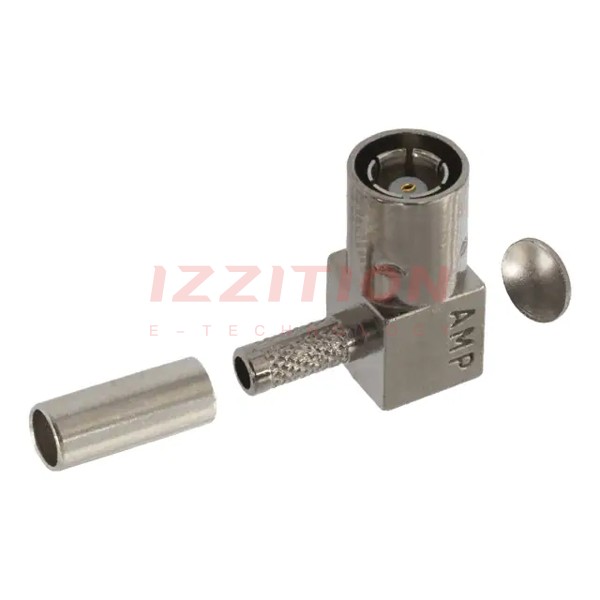

| Part Number | 414363-5 | 414363-3 | 414363-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | SMB | SMB | SMB |
| Connector Type | Plug, Female Socket | Plug, Female Socket | Plug, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - |
| Cable Group | RG-174, 188, 316 | RG-174, 188, 316 | RG-174, 188, 316 (Double Braid) |
| Fastening Type | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 3 GHz | 3 GHz | 3 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
