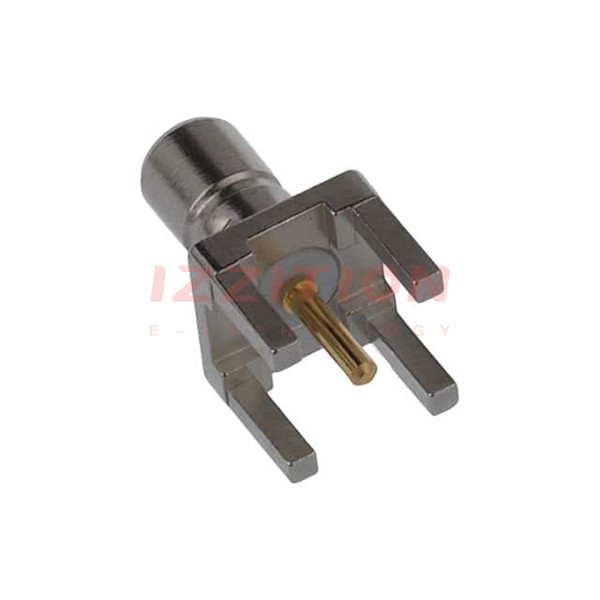

| Part Number | 413990-2 | 413996-2 | 413990-3 | 413990-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active |
| Connector Style | SMB | SMB | SMB | SMB |
| Connector Type | Receptacle, Male Pin | Receptacle, Male Pin | Receptacle, Male Pin | Receptacle, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Mounting Feature | - | - | - | - |
| Cable Group | - | - | - | - |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Silver | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Brass | Beryllium Copper | Brass | Brass |
