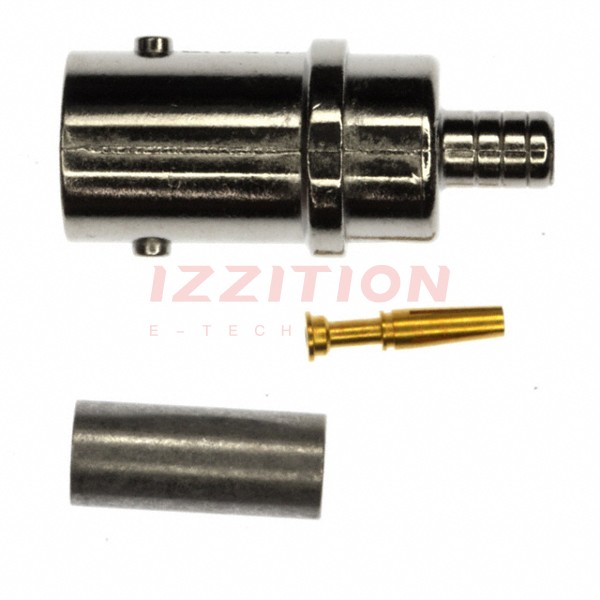

| Part Number | 413760-3 | 413760-9 | 413760-8 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Style | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp |
| Impedance | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Cable Group | Belden 8218 | RG-59, Belden 9240, 9259, 9266 | RG-179, 179A, 179B, 187, 187A |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
