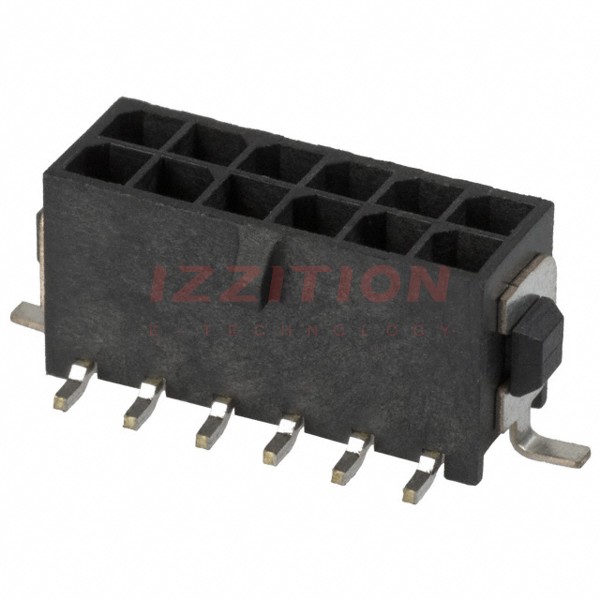

TE Connectivity AMP Connectors-4-794636-2 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	4-794636-2	4-794637-2	4-794636-6	4-794638-2	4-794636-4	4-794636-8	4-794626-2	4-794630-2	4-794631-2	4-794632-2	4-794633-2	4-794634-2	4-794635-2	4-794636-0
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Number of Positions	12	12	16	12	14	18	12	12	12	12	12	12	12	10
Number of Rows	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount, Right Angle	Through Hole	Through Hole	Through Hole	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Solder	Solder	Solder	Solder
Fastening Type	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp	Locking Ramp
Contact Length - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Contact Length - Post	-	-	-	-	-	-	-	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	-	-	-	-
Overall Contact Length	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Insulation Height	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.290" (7.37mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)	0.364" (9.25mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Gold	Tin	Gold	Tin	Tin	Gold	Tin	Gold	Gold	Tin	Gold	Gold	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)	15.0µin (0.38µm)	100.0µin (2.54µm)	30.0µin (0.76µm)	100.0µin (2.54µm)	100.0µin (2.54µm)	30.0µin (0.76µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	100.0µin (2.54µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	Solder Retention	Solder Retention	Solder Retention	Solder Retention	Solder Retention	Solder Retention	Board Lock	-	-	-	Board Lock, Pick and Place	Board Lock, Pick and Place	Board Lock, Pick and Place	Solder Retention
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	5A	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Voltage Rating	250V	250V	250V	250V	250V	250V	250VAC	250V	250V	250V	250V	250V	250V	250V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.364" (9.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	250V
