4-647630-2
  • Share:

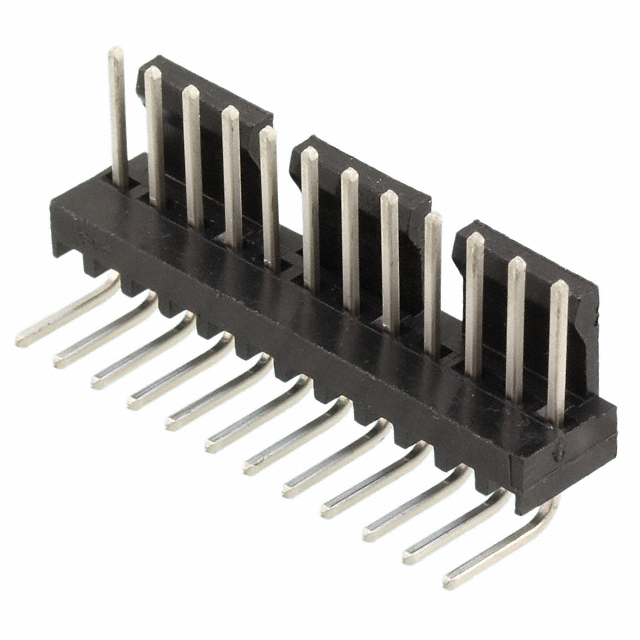

TE Connectivity AMP Connectors 4-647630-2

Manufacturer No:
4-647630-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
4-647630-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 12POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.290" (7.37mm)
Contact Length - Post:0.140" (3.56mm)
Overall Contact Length:-
Insulation Height:0.250" (6.35mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.59
358

Please send RFQ , we will respond immediately.
