Please send RFQ , we will respond immediately.

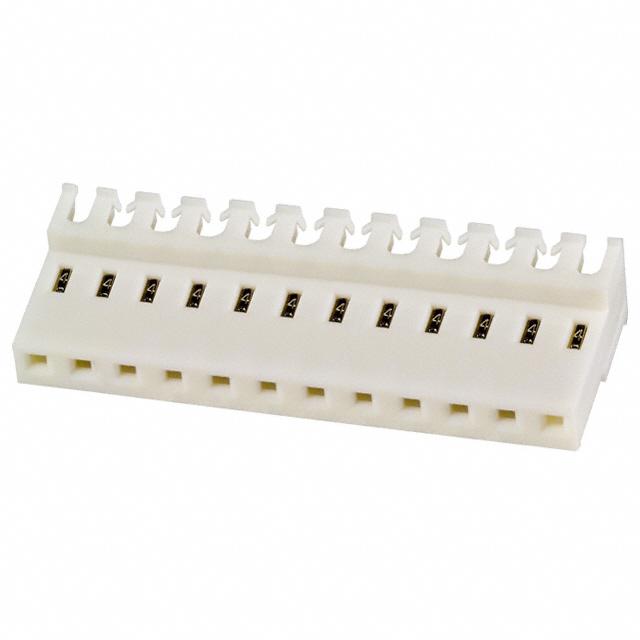

| Part Number | 4-640607-2 | 4-640608-2 | 4-640607-7 | 4-640600-2 | 4-640601-2 | 4-640602-2 | 4-640604-2 | 4-640605-2 | 4-640606-2 | 4-640607-0 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 12 | 12 | 17 | 12 | 12 | 12 | 12 | 12 | 12 | 10 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | - | Locking Ramp | Locking Ramp | Locking Ramp | - | - | - | - |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | 26 AWG | 24 AWG | 20 AWG | 22 AWG | 24 AWG | 18 AWG | 20 AWG | 22 AWG | 24 AWG |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Color | White | Blue | White | Yellow | Red | White | Orange | Yellow | Red | White |
