Please send RFQ , we will respond immediately.

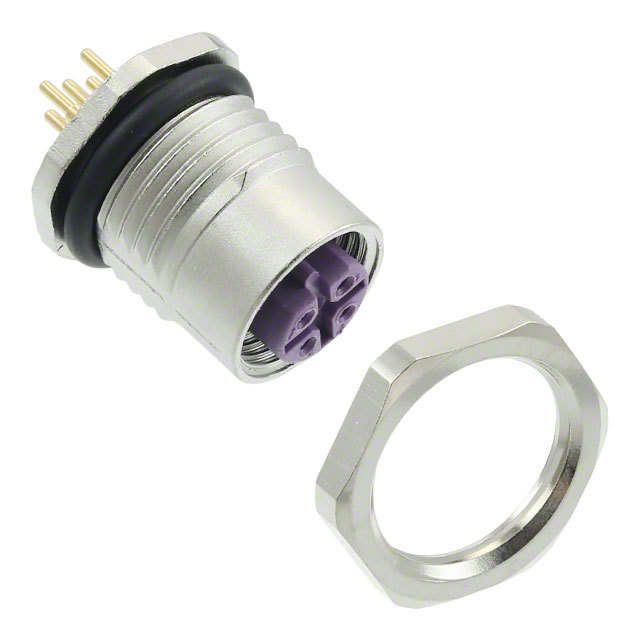

| Part Number | 4-2271144-2 | 4-2271143-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 5 | 5 |
| Shell Size - Insert | M12-5 | M12-5 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead | Bulkhead |
| Termination | Solder | Solder |
| Fastening Type | Threaded | Threaded |
| Orientation | B | A |
| Primary Material | Metal | Metal |
| Shell Material | Brass and Zinc Die Cast | Zinc Die Cast |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold |
| Color | Silver | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | - | - |
| Shielding | - | - |
| Current Rating (Amps) | 4A | 4A |
| Voltage Rating | 125VAC/DC | 125VAC/DC |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
