TE Connectivity AMP Connectors-4-2271111-2 - Circular Connectors Product Specifications and Latest Quotes

Connector Type:	Plug, Male Pins
Number of Positions:	5
Shell Size - Insert:	M12-5
Shell Size, MIL:	-
Mounting Type:	Free Hanging (In-Line)
Mounting Feature:	-
Termination:	Screw
Fastening Type:	Threaded
Orientation:	A
Primary Material:	Metal
Shell Material:	Zinc Die Cast
Shell Finish:	Nickel
Contact Finish - Mating:	Gold
Color:	Silver
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Shielded
Current Rating (Amps):	4A
Voltage Rating:	125V
Cable Opening:	0.197" ~ 0.315" (5.00mm ~ 8.00mm)
Operating Temperature:	-40°C ~ 85°C

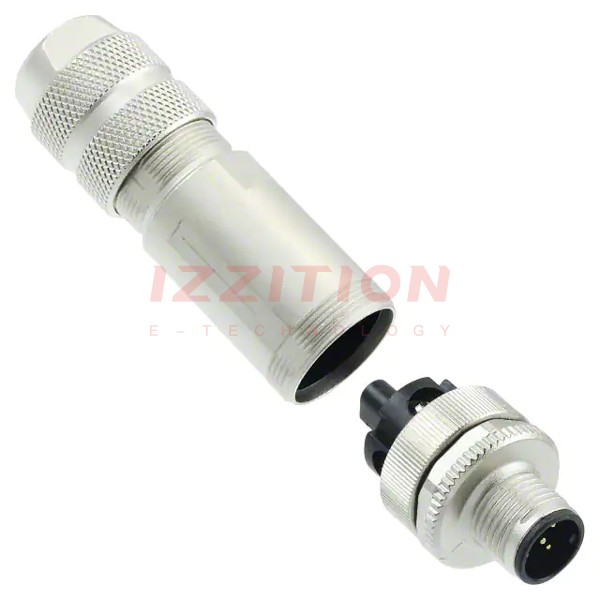

TE Connectivity AMP Connectors 4-2271111-2
