4-1971846-8
  • Share:

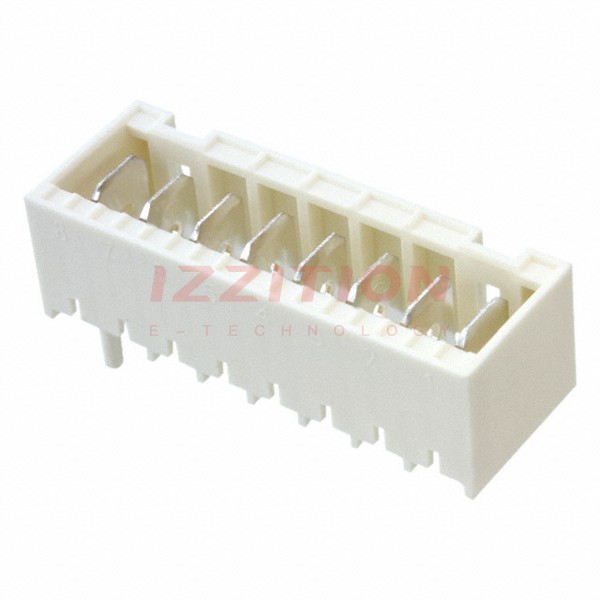

TE Connectivity AMP Connectors 4-1971846-8

Manufacturer No:
4-1971846-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
4-1971846-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:-
Contact Finish - Post:Silver
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):20A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$2.37
297

Please send RFQ , we will respond immediately.

Similar Products

Part Number 4-1971846-8 4-1971845-8
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active
Connector Type Header Header
Contact Type Tab Tab
Pitch - Mating 0.197" (5.00mm) 0.197" (5.00mm)
Number of Positions 8 8
Number of Rows 1 1
Row Spacing - Mating - -
Number of Positions Loaded All All
Style Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole
Termination Solder Solder
Fastening Type Latch Holder Latch Holder
Contact Length - Mating - -
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm)
Overall Contact Length - -
Insulation Height 0.504" (12.80mm) 0.504" (12.80mm)
Contact Shape Rectangular Rectangular
Contact Finish - Mating Silver Tin
Contact Finish Thickness - Mating - -
Contact Finish - Post Silver Tin
Contact Material Copper Alloy Copper Alloy
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Guide, Glow Wire Compliant Board Guide, Glow Wire Compliant
Operating Temperature -40°C ~ 120°C -40°C ~ 120°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Natural Natural
Current Rating (Amps) 20A -
Voltage Rating 250VAC 250VAC
