4-1971817-4
  • Share:

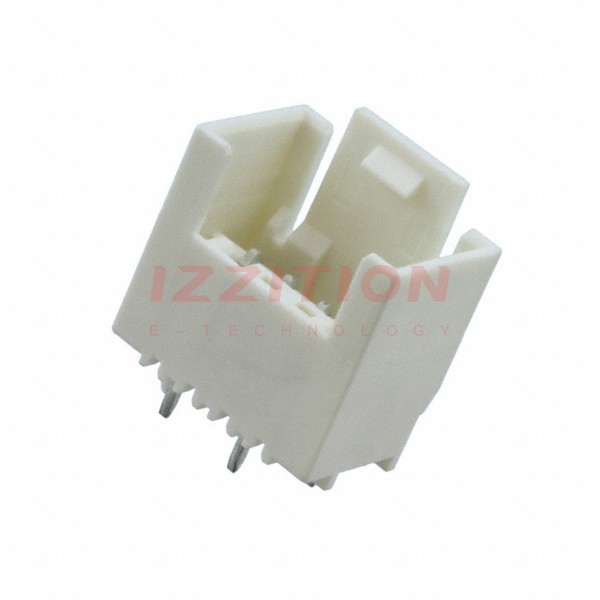

TE Connectivity AMP Connectors 4-1971817-4

Manufacturer No:
4-1971817-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
4-1971817-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.098" (2.50mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.610" (15.49mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.49
1,625

Please send RFQ , we will respond immediately.
