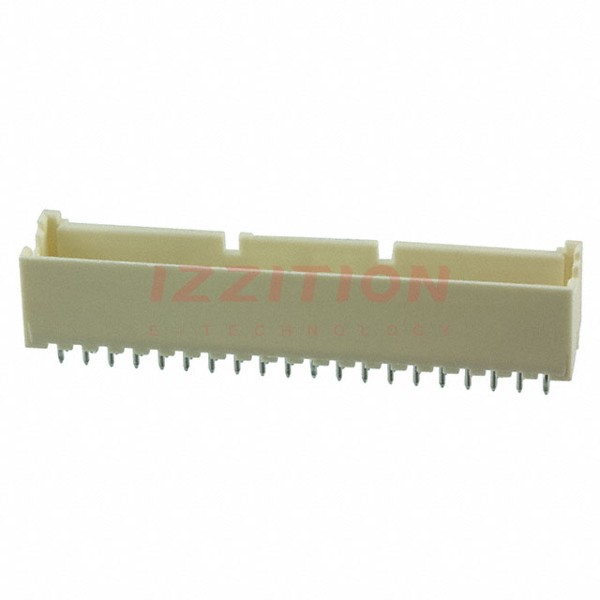

| Part Number | 4-1969584-0 | 4-1969582-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 40 | 40 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.134" (3.40mm) | 0.134" (3.40mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.386" (9.80mm) | 0.386" (9.80mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6 |
| Features | Glow Wire Compliant | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | White | White |
| Current Rating (Amps) | 4.2A | 4.2A |
| Voltage Rating | 250VAC | 250VAC |
