4-178488-1
  • Share:

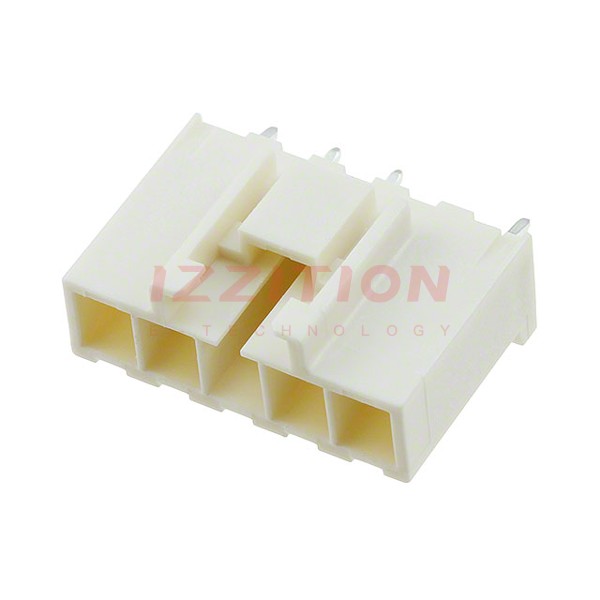

TE Connectivity AMP Connectors 4-178488-1

Manufacturer No:
4-178488-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
4-178488-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.156" (3.96mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.551" (14.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.08
840

Please send RFQ , we will respond immediately.
