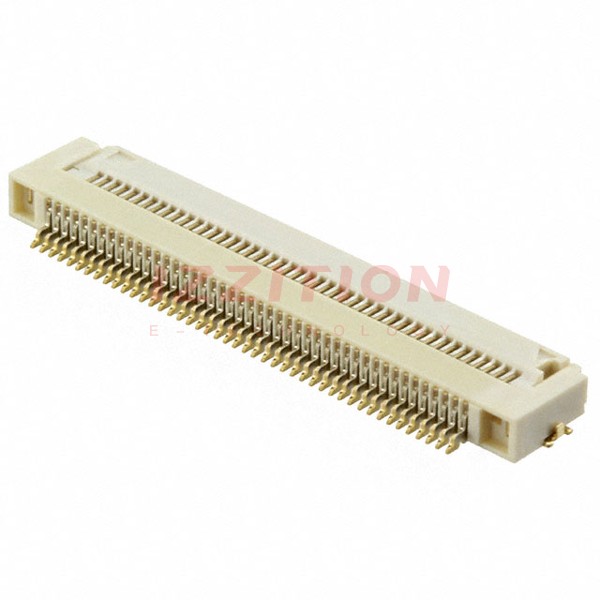

| Part Number | 4-1775333-5 | 4-1775333-8 | 5-1775333-5 | 3-1775333-5 | 4-1775333-0 | 4-1775333-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Flat Flex Type | FPC | FPC | FPC | FPC | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 45 | 48 | 55 | 35 | 40 | 42 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) |
| Locking Feature | Flip Lock | Flip Lock | Flip Lock | Flip Lock | Flip Lock | Flip Lock |
| Cable End Type | Straight | Straight | Straight | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 250V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
