4-175643-2
  • Share:

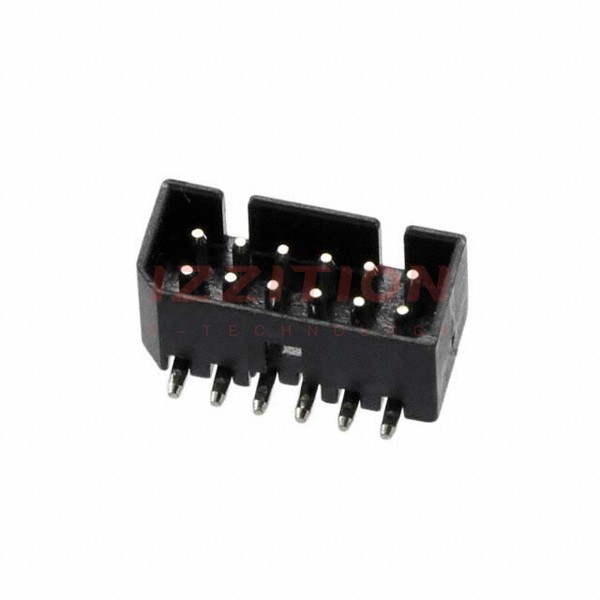

TE Connectivity AMP Connectors 4-175643-2

Manufacturer No:
4-175643-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
4-175643-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 12POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.156" (3.96mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyphenylene Sulfide (PPS)
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$1.44
387

Please send RFQ , we will respond immediately.
