Please send RFQ , we will respond immediately.

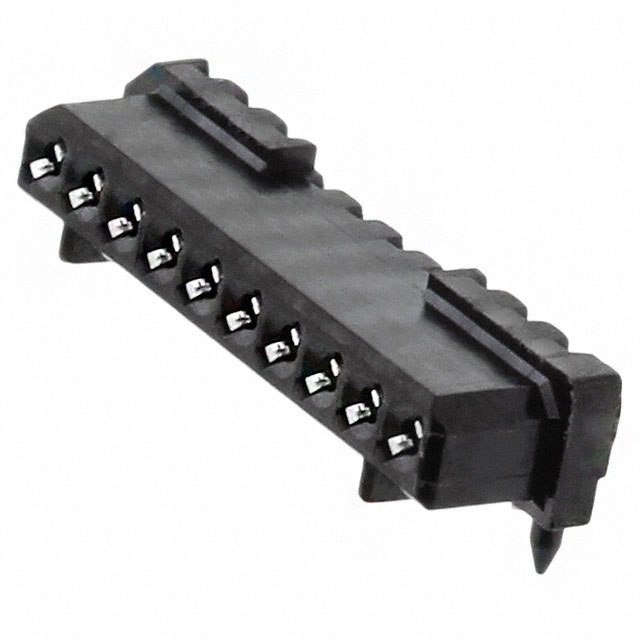

| Part Number | 4-175637-0 | 4-175638-0 | 4-175639-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Forked | Forked | Female Socket |
| Style | Board to Board | Board to Board | Board to Board |
| Number of Positions | 10 | 10 | 10 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Rows | 1 | 2 | 2 |
| Row Spacing - Mating | - | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Mounting Type | Surface Mount, Right Angle | Surface Mount | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Insulation Color | Black | Black | Black |
| Insulation Height | - | - | - |
| Contact Length - Post | - | - | - |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | - |
| Mated Stacking Heights | - | - | - |
| Ingress Protection | - | - | - |
| Features | Board Guide | Board Guide | Board Guide |
| Current Rating (Amps) | 0.5A | 0.5A | 0.5A |
| Voltage Rating | 50V | 50V | 50V |
