Please send RFQ , we will respond immediately.

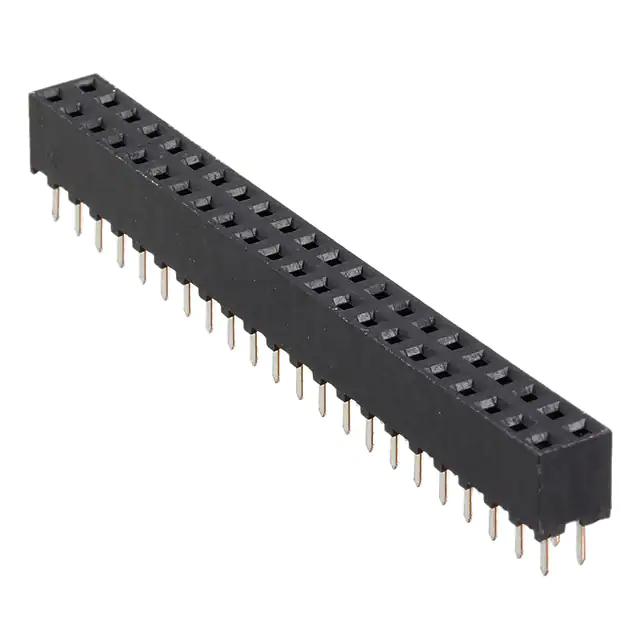

| Part Number | 4-1470209-5 | 4-1470209-8 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 44 | 50 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.177" (4.50mm) | 0.177" (4.50mm) |
| Contact Length - Post | 0.102" (2.60mm) | 0.102" (2.60mm) |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | 250VAC | 250VAC |
