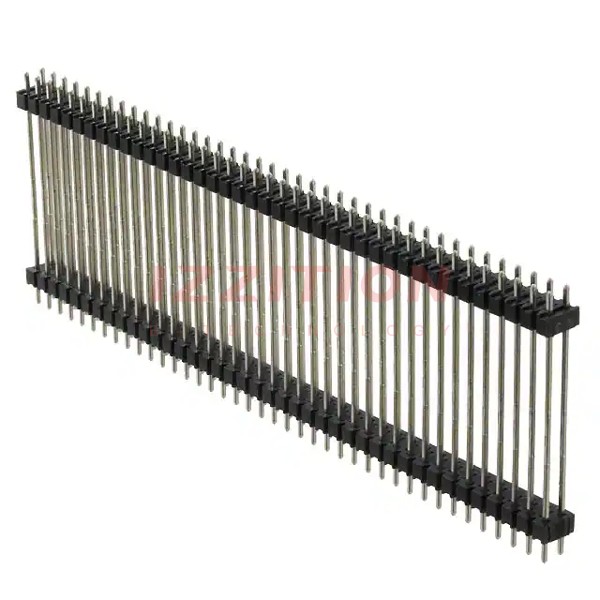

| Part Number | 4-146505-0 | 4-146509-0 | 4-146507-0 | 4-146501-0 | 4-146502-0 | 4-146503-0 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Positions | 80 | 80 | 80 | 80 | 80 | 80 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Length - Overall Pin | 1.330" (33.782mm) | 1.430" (36.322mm) | 1.330" (33.782mm) | 1.130" (28.700mm) | 1.230" (31.242mm) | 1.230" (31.242mm) |
| Length - Post (Mating) | 0.120" (3.050mm) | 0.330" (8.382mm) | 0.330" (8.382mm) | 0.330" (8.382mm) | 0.120" (3.050mm) | 0.330" (8.382mm) |
| Length - Stack Height | 1.100" (27.940mm) | 1.000" (25.400mm) | 0.670" (17.018mm) | 0.470" (11.938mm) | 1.000" (25.400mm) | 0.800" (20.320mm) |
| Length - Tail | 0.110" (2.800mm) | 0.100" (2.540mm) | 0.330" (8.382mm) | 0.330" (8.382mm) | 0.110" (2.800mm) | 0.100" (2.540mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Contact Finish - Post (Mating) | Tin-Lead | Gold | Gold | Gold | Tin-Lead | Gold |
| Contact Finish Thickness - Post (Mating) | 100.0µin (2.54µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 100.0µin (2.54µm) | 15.0µin (0.38µm) |
| Color | Black | Black | Black | Black | Black | Black |
